Zhengzhou Gaode Equipment Co., Ltd.
Main categories: Grout Station/Hose Pump, Hydraulic Jack, Planetary Concrete Mixer, Hydroseeder, Concrete & Refractory Shotcrete Machine
Ranked #1 on-time delivery in Mortar Spray MachinesAnnual export US $2,160,000Full customizationTotal staff (120)Total floorspace (3,296㎡)

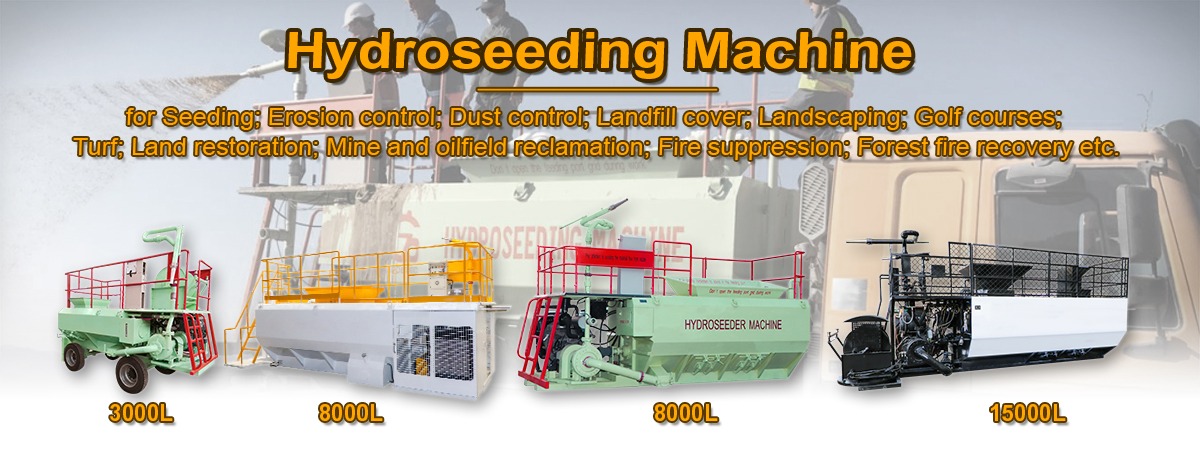

Application of Hydroseeder Machine

GHS Series hydroseeding machine and hydroseeder technology are more and more applied in road greening, expressway slope greening, erosion control, landfill cover, mine reclamation, dust control, landscaping, etc. projects and also involves in planting permanent vegetation, spraying slurry, slope protection, grassing, and erosion prevention.



CERTIFICATES

CE
CE
CE
CE
CE
CE





Hydroseeding machine:

1. 1000L-15000L, 317-4000gallon

2. Cummins diesel engine or Chinese brand diesel engine

3. Customized according to customer requirements.



Model Power Tank Size Pump
GHS0117 17KW, Briggs & Stratton gasoline engine, air cooled 300Gallon/1200L/1.2m3 3''x1.5'' (7.5X3.75cm), 15m³/h@5bar, 19mm solid clearance
GHS0217 17KW, Briggs & Stratton gasoline engine, air cooled 500Gallon/2000L/2m3 3''x1.5'' (7.5X3.75cm), 15m³/h@5bar, 19mm solid clearance
GHS0230 30KW, Chinese brand engine, water-cooled/air cooled 500Gallon/2000L/2m3 3’’x1.5’’ (7.5X3.75cm), 45m³/h@5bar, 10mm solid clearance
GHS0353 53KW, Chinese brand engine, water-cooled/air cooled 800Gallon/3000L/3m3 4’’x2’’ (10X5cm), 70m³/h@7bar, 10mm solid clearance
GHS0353T 53KW, Chinese brand engine, water-cooled/air cooled 800Gallon/3000L/3m3 4’’x2’’ (10X5cm), 70m³/h@7bar, 10mm solid clearance
GHS0551 51KW, Cummins engine, water-cooled 1300Gallon/5000L/5m3 4''x2'' (10.2X5cm), 73m³/h@7bar, 25mm solid clearance
GHS0683 83KW, China brand diesel engine, water-cooled 1600Gallon/6000L/6m3 5’’x2.5’’ (12.6X6.3cm), 90m³/h@10bar, 20mm solid clearance
GHS0883 83KW, China brand diesel engine, water-cooled 2100Gallon/8000L/8m3 5’’x2.5’’ (12.6X6.3cm), 90m³/h@10bar, 20mm solid clearance
GHS0883T 83KW, China brand diesel engine, water-cooled 2100Gallon/8000L/8m3 5’’x2.5’’ (12.6X6.3cm), 90m³/h@10bar, 20mm solid clearance
GHS06100 100KW, Cummins engine, water-cooled 1600Gallon/6000L/6m3 5’’x3’’ (12.6X7.6cm), 100m³/h@11bar, 20mm solid clearance

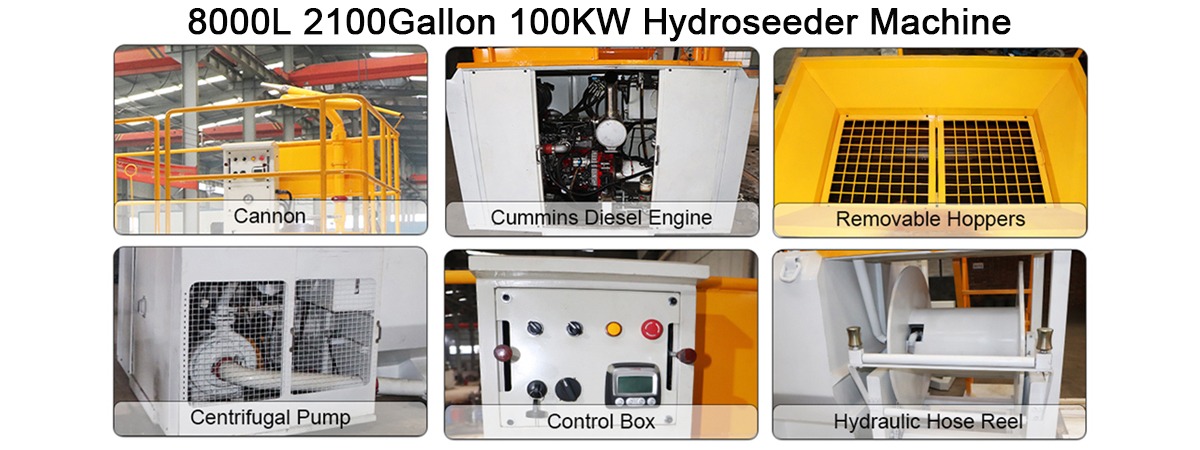

GHS08100 100KW, Cummins engine, water-cooled 2100Gallon/8000L/8m3 5’’x3’’ (12.6X7.6cm), 100m³/h@11bar, 20mm solid clearance
GHS06100A  103KW @ 220rpm Yuchai engine, water-cooled 1600Gallon/6000L/6m3 5''x2.5'' (12.7X6.4cm), 100m³/h(440gpm)@ 11bar, 1'' (2.5cm) solid clearance
GHS08100A  103KW @ 220rpm Yuchai engine, water-cooled 2100Gallon/8000L/8m3 5''x2.5'' (12.7X6.4cm), 100m³/h(440gpm)@ 11bar, 1'' (2.5cm) solid clearance
GHS10120 120KW, Cummins engine, water-cooled 2600Gallon/10000L/10m3 5''x2.5'' (12.7X6.4cm), 90m³/h@11bar, 25mm solid clearance
GHS13190  190KW, Cummins engine, water-cooled 3400Gallon/13000L/13m3 Centrifugal pump:6’’x3’’ (15.2X7.6cm), 120m³/h@14bar, 33mm solid clearance

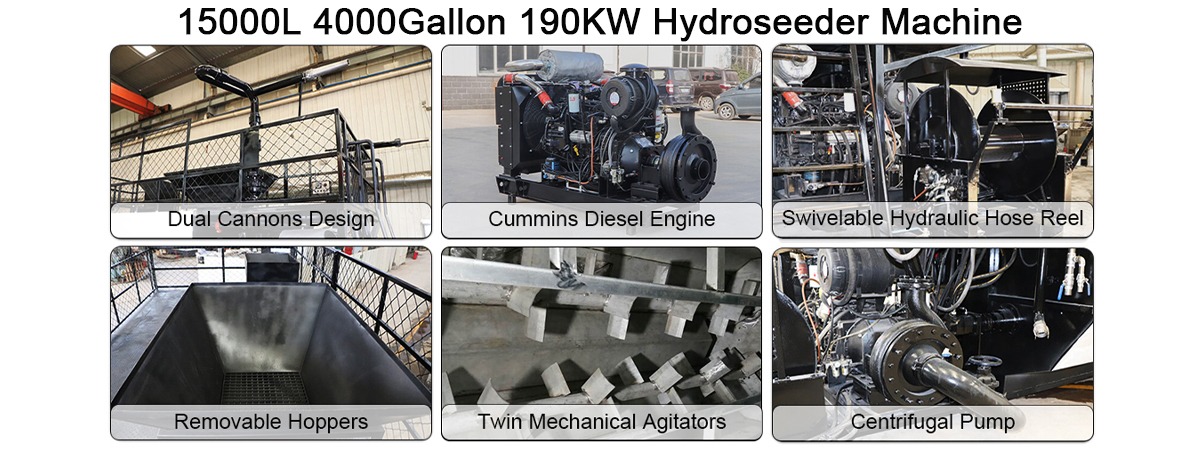

GHS15190  190KW, Cummins engine, water-cooled 4000Gallon/15000L/15m3 6’’x3’’ (15.2X7.6cm), 120m³/h@14bar, 32mm solid clearance
